GaN Ultra JR-TCG05EU 140W 3C1A Fast Charger-Black+240W C to C Cable 1.2m-Black (EU)

Description

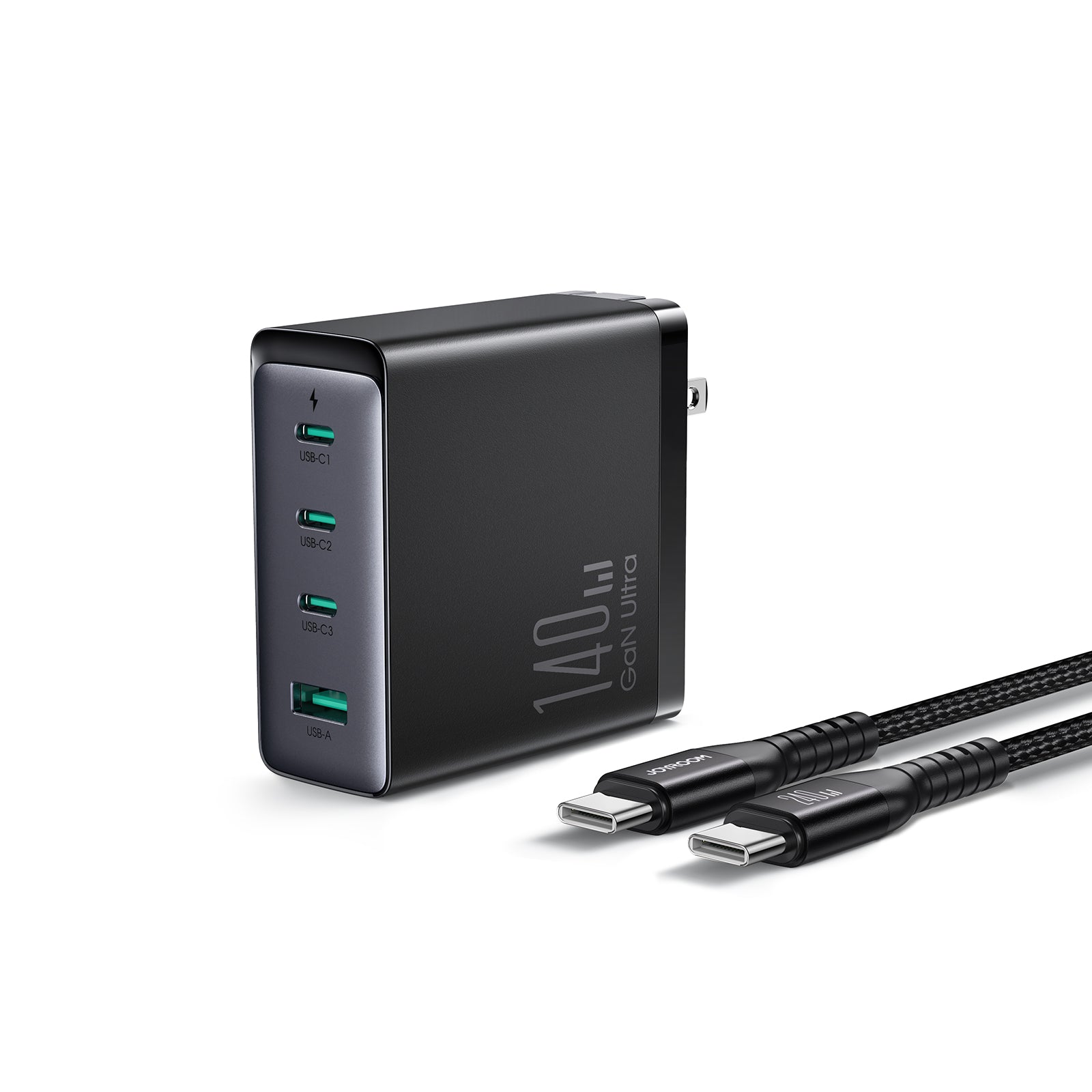

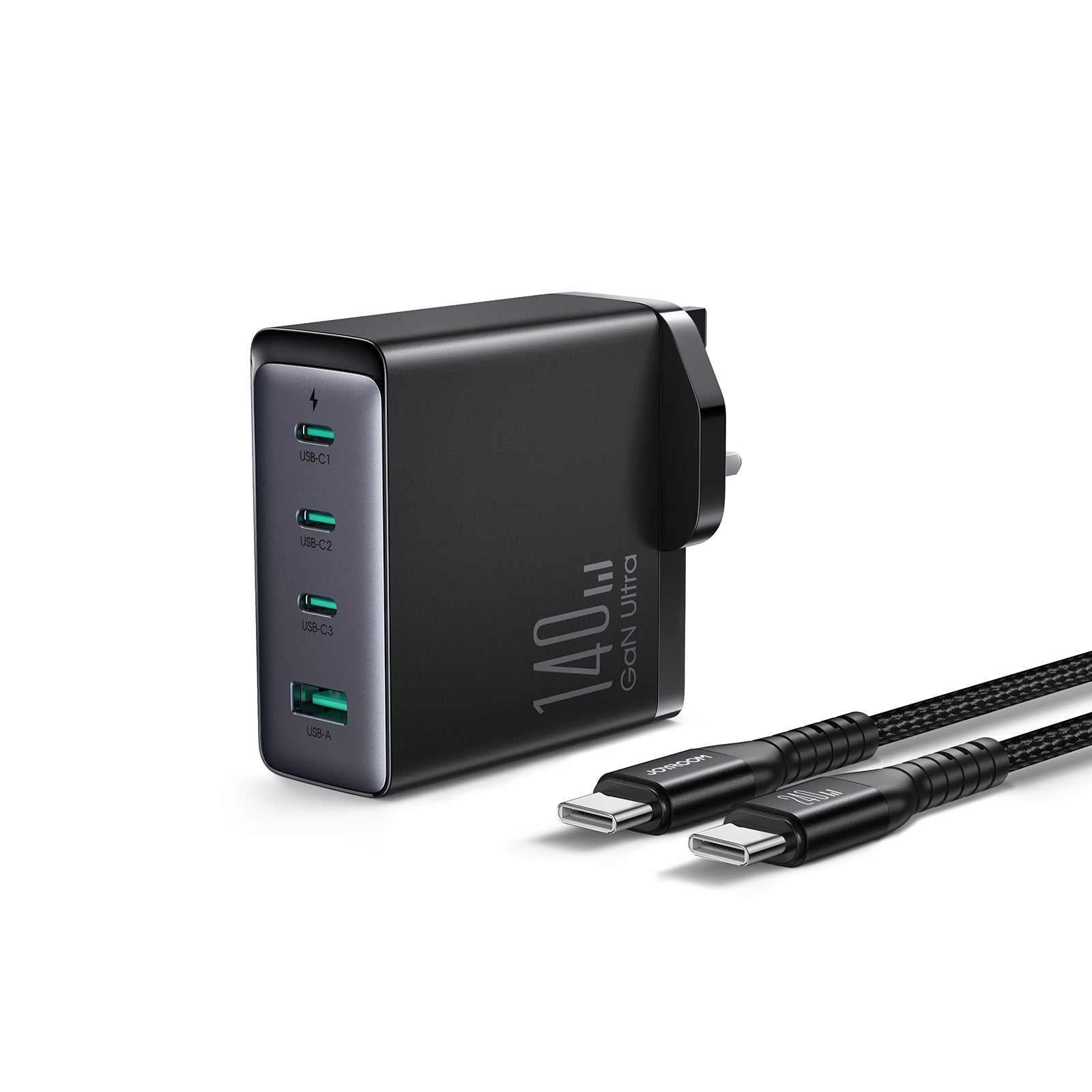

The Joyroom JR-TCG05EU is a high-power 140W GaN charger equipped with four output ports—three USB-C and one USB-A. Engineered with the latest GaN technology and PD3.1 protocol, it supports full-speed charging for laptops, tablets, and smartphones, with the ability to charge up to 4 devices simultaneously. Certified for safety and built for high-efficiency performance.

Key Features:

  • Uses GaN semiconductor material for less heat and stable charging

  • 140W total power output, supports PD3.1 and latest fast charging standards

  • Charges up to 4 devices simultaneously

  • Compatible with PD3.1, PPS, QC3.0, Samsung AFC, Huawei FCP/SCP

  • CE, UKCA, FCC, RoHS certified

Specifications:

  • Dimensions: 110 × 74.5 × 35.6 mm

  • Weight: 335g

  • Material: PC fireproof material

  • Color Options: Black

  • Power Requirements:

    • Input: AC 100–240V~50/60Hz, 1.5A (Max)

    • USB-C1 Output: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A, 28V=5A

    • USB-C2 Output: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A

    • USB-C3 Output: 5V=3A, 9V=3A, 12V=2.5A, 15V=2A, 20V=1.5A

    • PPS:

      • USB-C2: 3.3–21V=5A

      • USB-C3: 3.3–11V=3A

    • USB-A Output: 4.5V=5A, 5V=4.5A, 9V=3A, 12V=2.5A, 20V=1.5A

    • Combined Outputs:

      • USB-C1+C2: 65W+65W

      • USB-C1/C2+C3/USB-A: 100W+30W

      • USB-C3+USB-A: 15W

      • USB-C1+C2+C3: 65W+45W+20W

      • USB-C1+C2+USB-A: 65W+45W+18W

      • USB-C1/C2+C3+USB-A: 100W+15W

      • USB-C1+C2+C3+USB-A: 65W+45W+15W

    • Total Output: 140W (Max)

GaN Ultra JR-TCG05EU 140W 3C1A Fast Charger-Black+240W C to C Cable 1.2m-Black (EU)

Product form

The Joyroom JR-TCG05EU is a high-power 140W GaN charger equipped with four output ports—three USB-C and one USB-A. Engineered with... Read more

SKU: 6956116769796

60.000 JOD

      Description

      The Joyroom JR-TCG05EU is a high-power 140W GaN charger equipped with four output ports—three USB-C and one USB-A. Engineered with the latest GaN technology and PD3.1 protocol, it supports full-speed charging for laptops, tablets, and smartphones, with the ability to charge up to 4 devices simultaneously. Certified for safety and built for high-efficiency performance.

      Key Features:

      • Uses GaN semiconductor material for less heat and stable charging

      • 140W total power output, supports PD3.1 and latest fast charging standards

      • Charges up to 4 devices simultaneously

      • Compatible with PD3.1, PPS, QC3.0, Samsung AFC, Huawei FCP/SCP

      • CE, UKCA, FCC, RoHS certified

      Specifications:

      • Dimensions: 110 × 74.5 × 35.6 mm

      • Weight: 335g

      • Material: PC fireproof material

      • Color Options: Black

      • Power Requirements:

        • Input: AC 100–240V~50/60Hz, 1.5A (Max)

        • USB-C1 Output: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A, 28V=5A

        • USB-C2 Output: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=5A

        • USB-C3 Output: 5V=3A, 9V=3A, 12V=2.5A, 15V=2A, 20V=1.5A

        • PPS:

          • USB-C2: 3.3–21V=5A

          • USB-C3: 3.3–11V=3A

        • USB-A Output: 4.5V=5A, 5V=4.5A, 9V=3A, 12V=2.5A, 20V=1.5A

        • Combined Outputs:

          • USB-C1+C2: 65W+65W

          • USB-C1/C2+C3/USB-A: 100W+30W

          • USB-C3+USB-A: 15W

          • USB-C1+C2+C3: 65W+45W+20W

          • USB-C1+C2+USB-A: 65W+45W+18W

          • USB-C1/C2+C3+USB-A: 100W+15W

          • USB-C1+C2+C3+USB-A: 65W+45W+15W

        • Total Output: 140W (Max)
